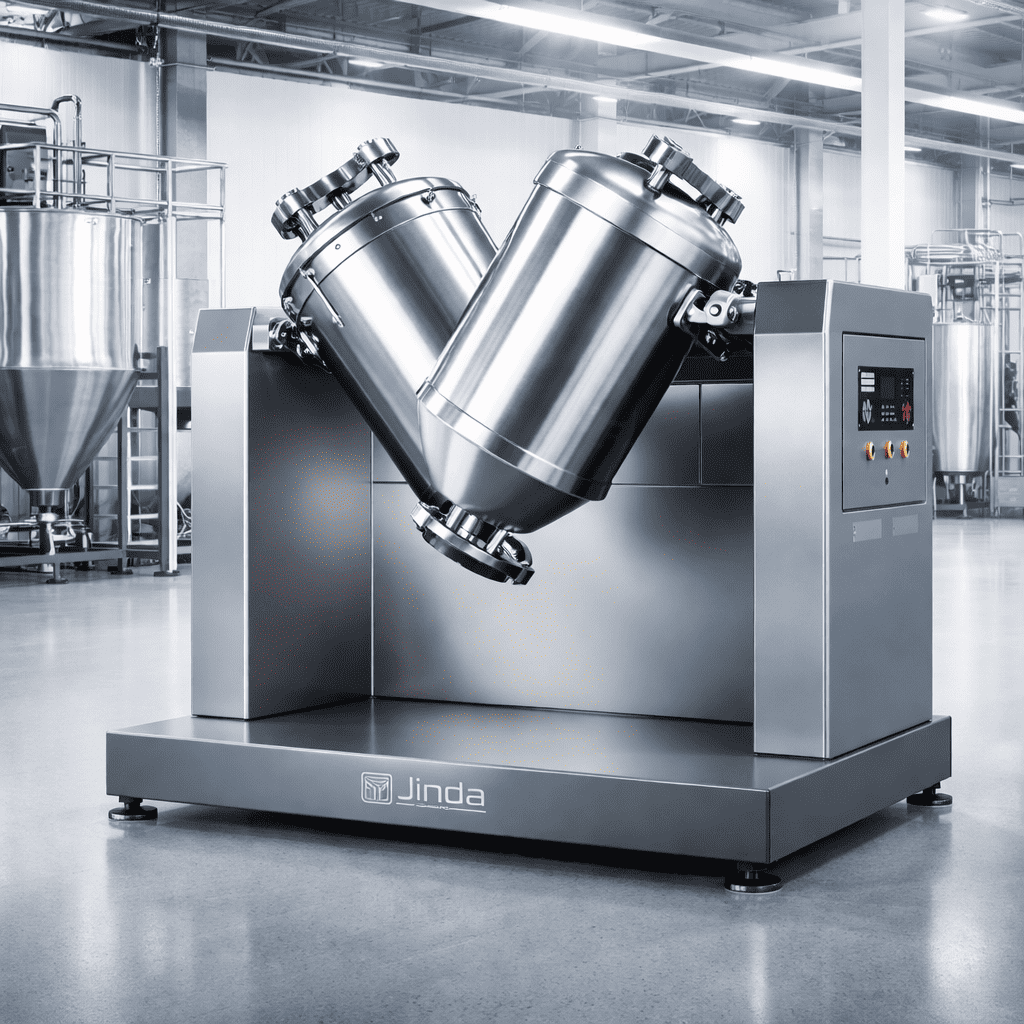

3D Swing Mixer YDSW Series
Multi-directional three-dimensional tumbling motion delivers uniform, dead-angle-free blending for dry powders, granules, and fragile materials -- with gentle action that protects product integrity.

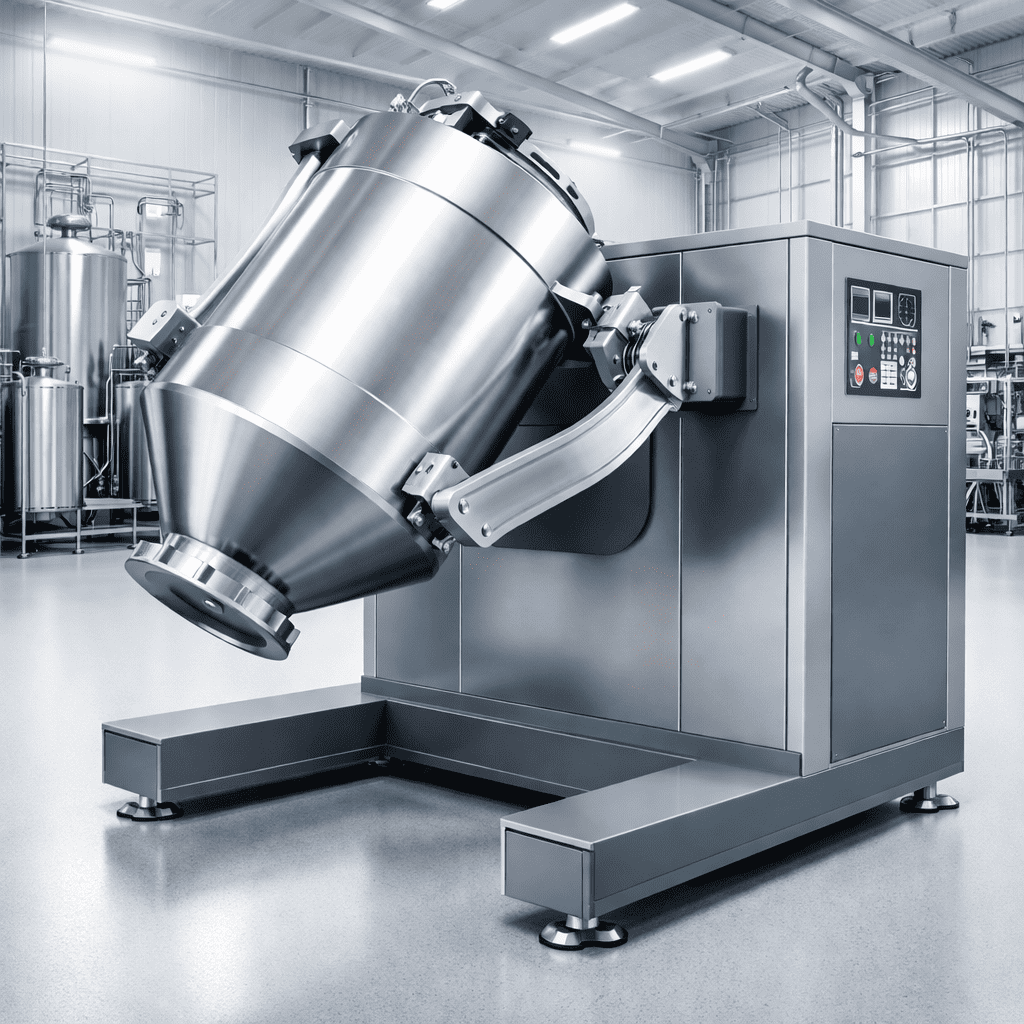

Product Overview
The YDSW 3D Swing Mixer delivers three-dimensional tumbling motion for thorough, gentle blending of powders and granules across demanding industrial applications.
The 3D Swing Mixer (Three-Dimensional Mixer) is an industrial blending machine that achieves mixing through a unique three-dimensional swinging and tumbling motion. Unlike conventional single-axis tumbling mixers, the YDSW series moves the mixing drum simultaneously in multiple directions, creating complex material flow patterns that eliminate dead zones and ensure thorough homogenization.
The low-speed, multi-directional motion is especially well-suited for fine powders, granules, and fragile materials where conventional high-shear mixing would cause degradation, segregation, or unwanted heat buildup.
Suitable Material Types
360° Multi-Dimensional Mixing
Three-dimensional tumbling motion eliminates dead zones, ensuring uniform blending of fine powders and fragile granules.
Gentle & Efficient Operation
Low-speed 3D motion prevents material segregation and heat accumulation, preserving product integrity and active ingredients.
Energy-Efficient Design
Low-energy consumption with high fill rates of 0.7-0.9 reduces operational costs compared to conventional tumbling mixers.
GMP-Compliant Construction
Stainless steel construction with smooth internal surfaces meets GMP and food-grade standards. Easy to clean, no contamination risk.
Working Principle
The YDSW mixer uses a unique drive mechanism that simultaneously rotates and tilts the mixing drum, creating complex three-dimensional material movement that ensures complete homogenization.
Operating Process
Material Preparation
Prepare the materials to be blended -- dry powders, wet powders, slurry liquids, or crystalline granules -- ensuring they meet the required specifications before loading.
Load Mixing Drum
Fill the mixing drum to the recommended fill ratio (0.7-0.9 of total volume). Secure the loading port and confirm all seals are properly closed.
Set Rotation Speed
Configure mixing speed (8-12 r/min) according to material characteristics. Adjust timing as needed for the specific blend requirements.
3D Mixing Cycle
The drum rotates in three dimensions simultaneously, creating complex material flow patterns. Materials fold, tumble, and cross-mix continuously for several minutes until uniform homogenization is achieved.
Evaluate & Discharge
Check mixing uniformity. If results meet specifications, proceed to discharge. If a second mixing cycle is required, repeat the process before unloading.
Technical Specifications
Nine standard models covering 50L to 1000L total volume. Custom configurations available for specific project requirements.
| Parameter | YDSW-50 | YDSW-100 | YDSW-200 | YDSW-300 | YDSW-400 | YDSW-500 | YDSW-600 | YDSW-800 | YDSW-1000 |
|---|---|---|---|---|---|---|---|---|---|
| Drum Volume (L) | 50 | 100 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 |
| Max Load Volume (L) | 40 | 80 | 160 | 240 | 320 | 400 | 480 | 640 | 800 |
| Main Shaft Speed (r/min) | 8-12 (all models) | ||||||||
| Motor Power (kW) | 1.1 | 1.5 | 2.2 | 4 | 4 | 5.5 | 5.5 | 7.5 | 7.5 |
| Dimensions L×W×H (mm) | 1000× 1400× 1100 | 1200× 1700× 1200 | 1400× 1800× 1500 | 1800× 1950× 1700 | 1800× 2100× 1800 | 1900× 2000× 1950 | 1900× 2100× 2100 | 2200× 2400× 2250 | 2250× 2600× 2400 |
| Machine Weight (kg) | 300 | 500 | 800 | 1000 | 1200 | 1300 | 1350 | 1400 | 1500 |
* Specifications are for reference. Custom configurations available. Contact our engineering team for project-specific requirements.
Application Industries
The YDSW 3D Mixer serves a broad range of industries where gentle, uniform blending of powders and granules is critical to product quality.
Pharmaceutical
Blending active pharmaceutical ingredients, excipients, and mineral components. Supports reaction, diffusion, and dissolution processes in closed, contamination-free conditions.
Food Industry
Blending spices, seasoning mixes, food additives, nutritional powders, and ingredient formulations. Food-grade stainless steel construction ensures hygiene compliance.
Chemical & Biochemical
Uniform blending of chemical powders, pigments, dyes, and biochemical compounds. Closed design prevents dust exposure and contamination during mixing.
Metallurgy
Mixing metal powders, alloy components, and metallurgical additives. Precise blending ratios critical for consistent material properties in downstream processing.
Electronics
Blending electronic-grade powders, ceramic materials, and specialty compounds requiring high purity and precise mixing uniformity for consistent electrical performance.
Defense Industry
Precise blending of specialty powders and compounds for defense applications where mixing uniformity and material integrity are mission-critical requirements.
Animal Feed & Pet Food
Uniform blending of feed additives, premixes, vitamins, and nutritional supplements. Gentle action preserves granule integrity and prevents ingredient segregation.
Health Supplements
Blending nutraceutical powders, herbal extracts, vitamins, and mineral compounds. Closed system protects sensitive active ingredients from oxidation and contamination.
Applicable Material Types
Recommended for dry powders and crystalline granules with bulk density 0.1-1.4 g/cm³
Equipment Comparison
Understanding how the 3D Swing Mixer differs from other common blending equipment helps identify the right solution for your specific application.
| Feature | Recommended 3D Swing Mixer | Double Cone Blender | Ribbon Blender |
|---|---|---|---|
| Motion Type | 3D multi-directional swing | Single-axis tumbling only | Fixed-axis ribbon rotation |
| Internal Moving Parts | None inside drum | None inside drum | Ribbon agitator inside |
| Design Type | Fully enclosed drum | Enclosed drum | Open-top trough |
| Mixing Uniformity | Excellent -- no dead zones | Good -- potential dead zones at cone tips | Good -- potential end-wall dead zones |
| Shear Force | Very low -- gentle on materials | Low -- gentle tumbling | Medium -- ribbon contact shear |
| Liquid Addition | Limited (slurries only) | Limited | Suitable for liquid + solid |
| Best For | Dry powders, granules, fragile materials | Dry powders and granules (medium batches) | Large-batch dry or wet blending |
| Fill Rate | 0.7-0.9 (high) | 0.5-0.7 (medium) | 0.4-0.7 (medium) |
3D Mixer vs. Double Cone Blender
The Double Cone Blender uses a single rotation axis -- the drum tumbles but does not swing in multiple directions. This can result in dead zones at the cone tips where material may not mix effectively. The 3D Swing Mixer's multi-directional motion creates more complex flow patterns, achieving better uniformity and higher fill rates without the segregation risk associated with simple tumbling.
3D Mixer vs. Ribbon Blender
The Ribbon Blender features an open-top trough design with internal ribbon agitators, making it well-suited for liquid-solid mixing and large batch volumes. However, the 3D Swing Mixer's fully enclosed drum design keeps materials isolated from the external environment during the entire mixing cycle -- a critical advantage for pharmaceutical, food, and high-value powder applications requiring contamination control. The 3D Mixer is recommended specifically for dry powders and crystalline granules.
Key Advantages
The YDSW 3D Swing Mixer is designed for reliable, consistent performance in demanding industrial and pharmaceutical blending applications.
Easy Installation
Compact, self-contained design requires minimal site preparation. Standard electrical connections and straightforward mechanical assembly reduce installation time and cost.
Fast & Uniform Mixing
Three-dimensional motion achieves thorough homogenization significantly faster than single-axis tumbling mixers. Complex material flow patterns eliminate dead zones and ensure consistent batch-to-batch results.
High Fill Rate (0.7-0.9)
Industry-leading fill rates of 70-90% maximize productive capacity per batch cycle. Higher fill rates reduce the number of batches required and lower energy consumption per unit of output.
Special Material Construction
Engineered with high-quality materials selected for the specific demands of powder mixing. Wear-resistant components and precision manufacturing ensure long service life and consistent performance.
GMP-Compliant Stainless Steel
All product-contact surfaces are manufactured from food-grade or pharmaceutical-grade stainless steel (SS304/SS316L options). Smooth internal finish prevents material buildup and enables thorough cleaning between batches.
Material Integrity Protection
Low-speed, low-shear operation prevents particle breakage, heat buildup, and ingredient degradation. Especially critical for heat-sensitive active ingredients, fragile granules, and high-value pharmaceutical compounds.
Purchasing Guide & FAQ
Answers to common questions about selecting and purchasing a 3D Swing Mixer, along with guidance on choosing the right manufacturer.
How do I select the right YDSW model for my application?
Model selection is based primarily on your required batch volume. Calculate your target batch weight, divide by the bulk density of your material to get the required volume in liters, then select a model where this volume falls within the 70-90% fill rate range (maximum load volume).
For example: if your batch is 200 kg of material with a bulk density of 0.5 g/cm³, you need approximately 400 liters of effective volume -- the YDSW-500 (400L max load) would be appropriate. Please share your material details with our engineering team for a verified recommendation.
What materials are the mixing drums made from?
Standard product-contact surfaces are manufactured from SS304 stainless steel. SS316L is available as an upgrade option for pharmaceutical applications, corrosive materials, or projects requiring higher hygienic standards. Interior surfaces can be polished to specified Ra values. Please specify your material contact requirements when requesting a quotation.
Can the 3D Mixer handle materials with different bulk densities?
The YDSW series is designed for materials with bulk densities ranging from 0.1 to 1.4 g/cm³. The three-dimensional motion is particularly effective at preventing segregation when blending materials with different densities -- a common challenge with single-axis tumbling mixers. For extreme density differences or very fine powders, we recommend material testing before finalizing the configuration.
Is the 3D Mixer suitable for pharmaceutical GMP environments?
Yes. The YDSW series can be configured for GMP pharmaceutical environments with SS316L contact surfaces, specified interior surface finish, sealed bearing arrangements, and documentation support. For regulated projects, we can discuss FAT requirements, material certificates, and validation documentation support.
Please note that specific validation responsibilities (IQ/OQ/PQ) and documentation scope should be confirmed in the project contract. Contact our engineering team to discuss your project's specific compliance requirements.
What should I consider when choosing a 3D Mixer manufacturer?
- Visit the manufacturing facility -- understand the production environment, quality control processes, and organizational capability. A factory visit provides direct evidence of manufacturing standards that cannot be assessed from a catalog alone.
- Review customer references -- ask for references from customers in your industry or with similar applications. Feedback from existing users provides realistic expectations about equipment performance, delivery reliability, and after-sales support quality.
- Evaluate the broader product range -- a manufacturer with a comprehensive powder processing portfolio demonstrates deeper engineering knowledge and is better positioned to support multi-equipment projects or future expansion.
- Confirm technical support capability -- evaluate whether the manufacturer can provide installation guidance, operator training, spare parts supply, and responsive after-sales service in your region.
Can Yinda provide material testing before I order?
Yes. Yinda Machinery supports material testing to verify mixing performance before equipment purchase. You can send a sample of your material to our facility for a mixing trial. We will document the test conditions, mixing time, uniformity results, and equipment configuration, then provide a test report with video documentation. This reduces the risk of selecting an incorrect model and provides confidence in the expected production results.
What documentation and after-sales support does Yinda provide?
Standard documentation includes: equipment drawings, electrical schematics, operation manual, maintenance manual, spare parts list, packing list, and material certificates for contact parts. Factory acceptance test (FAT) records are available on request.
After-sales support includes: installation guidance (manual, video, or remote assistance), operator training, spare parts supply (screens, seals, bearings, electrical components), and technical consultation. Specific support scope and response commitments should be confirmed in the purchase contract.
A Trusted Partner for Powder Processing Equipment
Yinda Machinery is a professional powder processing equipment manufacturer and engineering partner serving food, pharmaceutical, chemical, and industrial powder customers worldwide. We don't start from a machine model -- we start from your material, your process, and your production goals.
Our 3D Swing Mixers are manufactured with consistent quality standards, easy installation design, and reliable long-term performance in mind. We offer competitive pricing without compromising on material quality, construction accuracy, or after-sales commitment.
Ready to Discuss Your Mixing Requirements?
Share your material type, batch volume, and industry application. Our engineering team will review your requirements and recommend the right YDSW model and configuration.
