Masala Spice Powder Grinding Equipment and Fine Powder Processing Line

Yinda Machinery provides complete Masala spice powder grinding solutions including YDCS coarse crusher, YDGS spice hammer mill, vibrating sieve, dust collection system and temperature control equipment. The production line is designed for chili, turmeric, cumin, coriander seeds and blended spices, with customized solutions based on capacity, fineness and food-grade production requirements.

Review technical detailsRequest a quotation

Quick Answer: Which Equipment Is Suitable for Grinding Masala Spice Raw Materials?

For Masala spice powder production, a two-stage grinding process is usually recommended:

Pre-crushing + Fine Grinding

Recommended process flow:

Roasted Raw Materials鈫扽DCS Coarse Crusher鈫扴mall Particle Material鈫扽DGS Spice Hammer Mill鈫扸ibrating Sieve鈫扢asala Spice Powder

Masala Spice Powder Material Characteristics

Masala spice powder is a blended seasoning product produced through multiple processing steps including raw material selection, cleaning, roasting, crushing, grinding, screening and mixing. Typical ingredients include chili, turmeric, cumin, coriander seeds, black pepper, cinnamon, cloves, cardamom and other botanical spices.

Because different spices have different hardness, fiber content, oil content and volatile flavor characteristics, Masala powder production requires more than selecting a single grinding machine. A complete processing solution must consider raw material properties, required powder fineness, production capacity and temperature control requirements.

Common ingredients include:

Source reference specifications; final model and performance should be confirmed for the actual material.

Grinding performance is mainly affected by:

1. Material Hardness

Hard spices such as turmeric, black pepper and cinnamon usually require pre-crushing before fine grinding.

2. Roasting Condition

Roasting affects:

閳?/span> Moisture level;

閳?/span> Brittleness;

閳?/span> Grinding performance.

3. Residual Moisture

High moisture may cause:

閳?/span> Material sticking;

閳?/span> Screen blockage;

閳?/span> Lower grinding efficiency.

4. Natural Oil Content

Oil-containing spices such as chili, cumin and black pepper generate more heat during grinding, requiring proper process control.

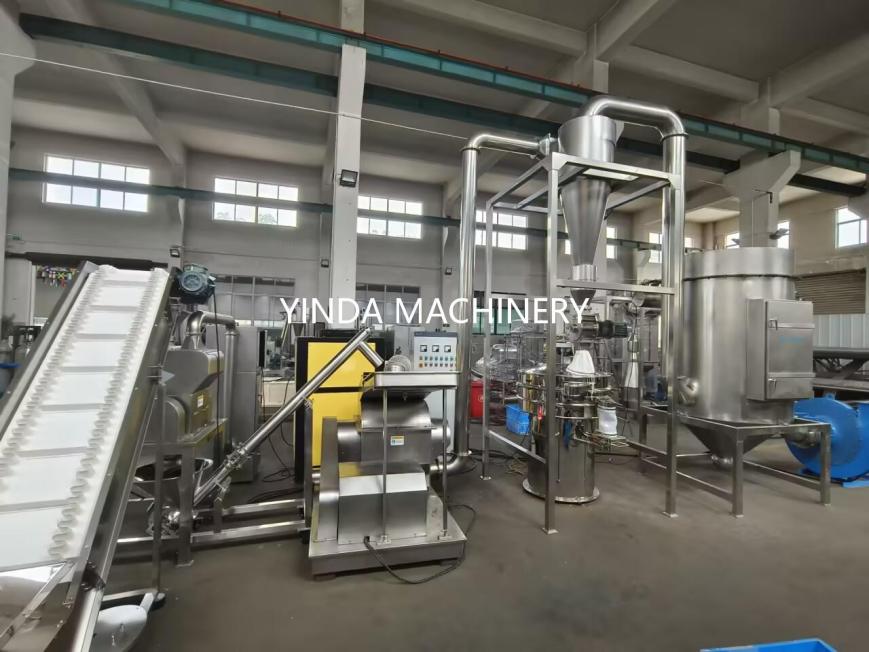

Recommended Complete Masala Spice Powder Production Process

A stable Masala spice powder production line should be designed according to:

閳?/span> Raw material characteristics;

閳?/span> Required powder fineness;

閳?/span> Production capacity;

閳?/span> Food-grade production standards.

Yinda recommends a continuous process:Raw Material Selection & Cleaning鈫扲oasting Pretreatment鈫払elt Conveyor鈫扽DCS Coarse Crusher鈫?-6 mm Intermediate Particles鈫扴crew Conveyor鈫扽DGS Spices Hammer Mill鈫扖yclone Separator鈫扨ulse Dust Collector鈫扸ibrating Screen鈫扚inished Masala Powder

Optional equipment may include:

閳?/span> feeding hopper;

閳?/span> magnetic separator;

閳?/span> screw or vacuum or belt conveying system;

閳?/span> high-efficiency dust collection box;

閳?/span> cyclone separator;

閳?/span> pulse dust collector;

閳?/span> rotary airlock;

閳?/span> YDLF air-cooled chiller;

閳?/span> vibrating sifter;

閳?/span> powder collection bin;

閳?/span> packing machine;

閳?/span> Vibrating sifter.

The complete configuration should be selected according to the production capacity, plant layout, cleanliness requirement and final powder specification.

Watch the related YINDA equipment video

Masala Spice Powder Grinding Equipment Selection

First Stage: YDCS Series Coarse Crusher

Why Is YDCS Coarse Crusher Important for Masala Production?

Many spice materials are not suitable for direct fine grinding.

Examples:

閳?/span> Whole turmeric;

閳?/span> Dried chili;

閳?/span> Cinnamon pieces;

閳?/span> Large botanical seeds.

Direct fine grinding may cause:

閳?/span> Feeding problems;

閳?/span> Lower grinding efficiency;

閳?/span> Higher machine load.

The YDCS coarse crusher works as the first-stage pretreatment equipment, reducing raw material size and creating stable conditions for fine grinding.

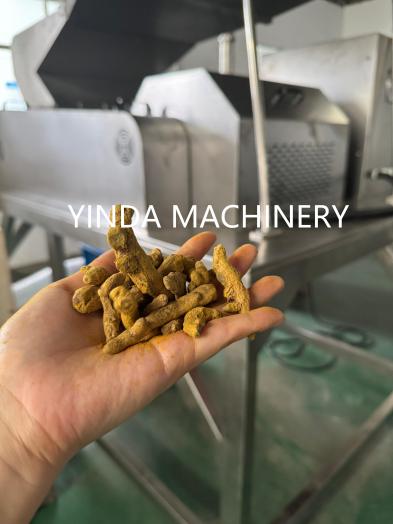

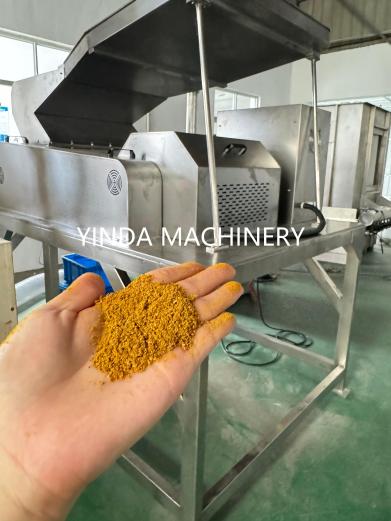

Yinda Testing Data

Test Material:Turmeric

Equipment:YDCS Coarse Crusher

Result:Output particle size:Approximately 4 mm

Note:This result applies only to the tested material and machine configuration.

Actual particle size depends on:

閳?/span> Turmeric variety;

閳?/span> Moisture content;

閳?/span> Screen specification;

閳?/span> Feeding size.

YDCS Applications

YDCS coarse crusher is widely used in:

閳?/span> Food industry;

閳?/span> Pharmaceutical industry;

閳?/span> Chemical industry;

閳?/span> Metallurgical industry;

閳?/span> Building material industry.

閳?/span> Suitable for:

閳?/span> Hard materials;

閳?/span> Large particles;

閳?/span> Difficult-to-crush materials.

YDCS Features

閳?/span> 1. Continuous Operation

YDCS is designed for continuous production.

閳?/span> Suitable for:

閳?/span> Industrial production;

閳?/span> Automated lines;

閳?/span> Long-time operation.

閳?/span> 2. Strong Adaptability

閳?/span> The machine handles materials with different:

閳?/span> Hardness;

閳?/span> Softness;

閳?/span> Fiber structures.

閳?/span> 3. GMP-Oriented Design

閳?/span> Features:

閳?/span> Stainless steel construction;

閳?/span> Simple structure;

閳?/span> Easy cleaning;

閳?/span> Low noise operation.

閳?/span> 4. Adjustable Particle Size

閳?/span> Final particle size can be adjusted by selecting different screens.

Watch the related YINDA equipment video

Second Stage: YDGS Spices Hammer Mill for Fine Grinding

閳?/span> After YDCS coarse crushing, spice particles need further fine grinding to achieve the uniform powder quality required for Masala seasoning applications.

閳?/span> Yinda Machinery YDGS series spice hammer mill is specially designed for:

閳?/span> Oil-containing materials;

閳?/span> Aromatic botanical materials;

閳?/span> Fibrous materials;

閳?/span> in food, pharmaceutical and chemical industries.

閳?/span> It is widely used for:

閳?/span> Chili;

閳?/span> Sweet pepper;

閳?/span> Cumin;

閳?/span> Black pepper;

閳?/span> Cinnamon;

閳?/span> Turmeric;

閳?/span> Dried ginger;

閳?/span> Star anise;

閳?/span> Clove;

閳?/span> Cardamom;

閳?/span> Botanical seeds;

閳?/span> Herbal materials.

閳?/span> Main Features of YDGS Spices Hammer Mill

閳?/span> 1. Suitable for Continuous Grinding of Oil-Containing Spices

閳?/span> Many Masala ingredients contain natural oils.

閳?/span> Examples:

閳?/span> Chili;

閳?/span> Cumin;

閳?/span> Black pepper;

閳?/span> Coriander seeds.

閳?/span> Traditional grinding equipment may experience:

閳?/span> Temperature increase;

閳?/span> Material sticking;

閳?/span> Screen blockage;

閳?/span> Color change.

YDGS is optimized for oil-containing and fibrous spice processing.

閳?/span> 2. Adjustable Powder Fineness

閳?/span> The grinding fineness is controlled by screen selection.

閳?/span> Typical range:20-60 mesh

閳?/span> Common Masala project references:

40 mesh seasoning powder;

60 mesh fine powder;

閳?/span> Actual fineness depends on:

閳?/span> Raw material condition;

閳?/span> Moisture content;

閳?/span> Oil content;

閳?/span> Feeding speed;

閳?/span> Screen specification;

閳?/span> Airflow parameters.

閳?/span> Final performance should be confirmed by material testing.

閳?/span> 3. Continuous Production with Temperature Assistance

閳?/span> For continuous Masala powder production, YDGS can be equipped with:

閳?/span> YDLF Air Cooling Chiller

閳?/span> to assist temperature management.

閳?/span> However:

閳?/span> The cooling system cannot guarantee a fixed discharge temperature or completely preserve all original flavors.

閳?/span> Actual temperature depends on:

閳?/span> Ambient temperature;

閳?/span> Raw material temperature;

閳?/span> Feeding rate;

閳?/span> Grinding duration;

閳?/span> Target fineness;

閳?/span> Machine model;

閳?/span> Airflow system;

閳?/span> Cooling capacity.

閳?/span> Temperature requirements should therefore be verified through testing.

閳?/span> 4. GMP-Oriented Food Grade Design

YDGS adopts food and pharmaceutical industry design concepts.

閳?/span> Features:

閳?/span> Stainless steel construction;

閳?/span> Hygienic material contact area;

閳?/span> Smooth internal surface;

閳?/span> Reduced powder accumulation;

閳?/span> Easy cleaning.

閳?/span> Suitable for:

閳?/span> Food factories;

閳?/span> Seasoning manufacturers;

閳?/span> Spice processing companies;

閳?/span> Food additive producers.

Watch the related YINDA equipment video

Working Principle of YDCS + YDGS Two-Stage Grinding System

YDCS coarse crusher consists of:

閳?/span> Feeding inlet;

閳?/span> Crushing chamber;

閳?/span> Discharge outlet;

閳?/span> Electrical control cabinet.

閳?/span> Dust collection system can be added according to customer requirements.

閳?/span> Working process:

閳?/span> Raw material enters the crushing chamber through the hopper;

閳?/span> Rotating knives and fixed knives generate impact and cutting force;

閳?/span> Large spice particles are broken into smaller pieces;

閳?/span> Centrifugal force moves material toward the outlet;

閳?/span> Particle size is controlled by screen selection.

閳?/span> With dust collection:

閳?/span> Dust is transferred by airflow into the dust collector for centralized recovery.

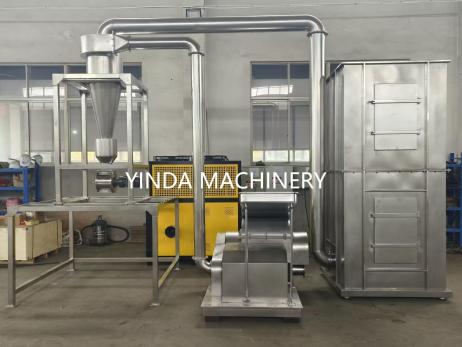

YDGS system includes:

閳?/span> Feeding section;

閳?/span> Grinding system;

閳?/span> Cyclone separator;

閳?/span> Pulse dust collector;

閳?/span> Electrical control cabinet.

閳?/span> Working process:

閳?/span> Pre-crushed material enters the grinding chamber;

閳?/span> High-speed rotating cutter disc moves against fixed ring teeth;

閳?/span> Material is reduced through:

閳?/span> Impact;

閳?/span> Cutting;

閳?/span> Friction;

閳?/span> Particle collision;

閳?/span> Powder passes through selected screens;

閳?/span> Material enters cyclone separator;

閳?/span> Fine powder is collected through pulse dust filtration.

Five Optional Masala Spice Powder Processing Configurations

閳?/span> Configuration 1: Standalone YDCS Coarse Crusher Solution

閳?/span> Main function:

閳?/span> Reduce large spice materials into smaller particles for further processing.

閳?/span> Suitable Applications

Recommended for customers who:

閳?/span> Only need coarse particles;

閳?/span> Already have downstream grinding equipment;

閳?/span> Need mechanical crushing instead of manual breaking;

閳?/span> Process small batches.

閳?/span> Suitable Materials

閳?/span> Turmeric pieces;

閳?/span> Cinnamon;

閳?/span> Dried chili;

閳?/span> Botanical seeds;

閳?/span> Large spice particles.

Source reference specifications; final model and performance should be confirmed for the actual material.

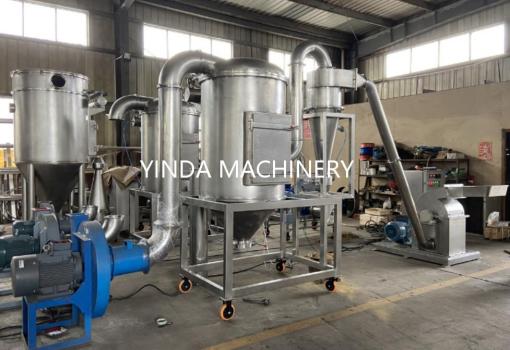

閳?/span> Configuration 2: YDCS Coarse Crusher with Dust Collection System

閳?/span> This configuration adds

閳?/span> Dust collector;

閳?/span> Pipeline system;

閳?/span> Fan system.

閳?/span> The negative pressure system collects dust generated during crushing.

閳?/span> Suitable Applications

閳?/span> Food factories;

閳?/span> Seasoning plants;

閳?/span> Continuous production;

閳?/span> Hygienic production areas.

Source reference specifications; final model and performance should be confirmed for the actual material.

閳?/span> Design Considerations

閳?/span> Dust collection capacity should not be selected only according to motor power.

閳?/span> Design depends on:

閳?/span> Airflow requirement;

閳?/span> Pipeline length;

閳?/span> Outlet structure;

閳?/span> Factory layout;

閳?/span> Dust characteristics.

閳?/span> Configuration 3: YDGS Hammer Mill with YDLF Air Cooling Chiller

閳?/span> Designed for:

閳?/span> Oil-containing spices;

閳?/span> Heat-sensitive materials;

閳?/span> Continuous grinding.

閳?/span> Main equipment:

YDGS Spices Hammer Mill with YDLF Air Cooling Chiller

閳?/span> Suitable Materials

閳?/span> Chili;

閳?/span> Cumin;

閳?/span> Black pepper;

閳?/span> Coriander seeds;

閳?/span> Botanical seeds.

Source reference specifications; final model and performance should be confirmed for the actual material.

閳?/span> Important Note

閳?/span> The cooling system cannot guarantee:

閳?/span> Fixed discharge temperature;

閳?/span> Complete flavor preservation.

閳?/span> Actual temperature depends on:

閳?/span> Ambient temperature;

閳?/span> Material temperature;

閳?/span> Feeding rate;

閳?/span> Grinding fineness;

閳?/span> Machine model;

閳?/span> Airflow;

閳?/span> Cooling capacity.

閳?/span> Testing is required.

閳?/span> Configuration 4: 304 / 316L Stainless Steel Food Grade Solution

閳?/span> For food factories and export projects, Yinda provides:

304 stainless steel;

閳?/span> 316L stainless steel;

閳?/span> options for material contact parts.

閳?/span> Suitable Applications

閳?/span> Food processing;

閳?/span> Seasoning manufacturers;

閳?/span> High hygiene production;

閳?/span> Pharmaceutical-related applications.

閳?/span> Configuration 5: Automated Conveying System Solution

閳?/span> For continuous Masala powder production lines, conveying systems improve:

閳?/span> Automatic feeding;

閳?/span> Production efficiency;

閳?/span> Labor reduction.

閳?/span> Optional Conveying Equipment

閳?/span> Belt Conveyor

閳?/span> Screw Conveyor

閳?/span> Vacuum Conveyor

Source reference specifications; final model and performance should be confirmed for the actual material.

Comparison Table of Five Configurations

Source reference specifications; final model and performance should be confirmed for the actual material.

Masala Spice Powder Grinding Equipment Selection Guide

How to Choose the Right Masala Spice Powder Grinding Equipment?

閳?/span> Selecting suitable Masala spice powder processing equipment requires more than searching for a single machine such as 鈥渟pice grinder鈥?or 鈥渃hili powder machine鈥?

閳?/span> In industrial production, the correct equipment selection must consider the complete processing requirements, including:

閳?/span> Raw material characteristics;

閳?/span> Feeding conditions;

閳?/span> Target powder fineness;

閳?/span> Production capacity;

閳?/span> Temperature control requirements;

閳?/span> Food-grade material standards;

閳?/span> Factory production conditions.

閳?/span> Therefore, a professional Masala spice powder production line should be designed based on actual project conditions.

閳?/span> 1. Raw Material Information Requirements

閳?/span> Spice Type and Composition

閳?/span> Raw Material Condition

閳?/span> Physical Characteristics

閳?/span> 2. Feeding Condition Requirements

閳?/span> Maximum Feeding Size

閳?/span> Feeding Method

閳?/span> Continuous Production Requirements

閳?/span> 3. Final Powder Specification Requirements

閳?/span> Target Fineness

閳?/span> Particle Distribution Requirements

閳?/span> Final Application

閳?/span> 4. Production Capacity Requirements

閳?/span> 5. Temperature Control Requirements

閳?/span> 6. Material and Food Grade Requirements

閳?/span> 7. Factory and Compliance Requirements

Masala Spice Powder Equipment FAQ

Q1: What machine is suitable for Masala powder production?

閳?/span> For complete Masala powder production, Yinda usually recommends a two-stage grinding system:

YDCS coarse crusher + YDGS spices hammer mill

閳?/span> The coarse crusher reduces large spice particles, while the hammer mill produces fine powder with adjustable fineness.

Q2: What fineness can Masala powder reach?

閳?/span> The final fineness depends on:

閳?/span> Material properties;

閳?/span> Screen size;

閳?/span> Feeding speed;

閳?/span> Grinding conditions.

YDGS can achieve approximately:

閳?/span> 20-60 mesh range.

40 mesh is commonly used as a project reference target.

Q3: Can the machine guarantee 40 mesh output?

閳?/span> No fixed fineness can be guaranteed without material testing.

閳?/span> The final result depends on:

閳?/span> Spice type;

閳?/span> Moisture;

閳?/span> Oil content;

閳?/span> Processing conditions;

閳?/span> Equipment configuration.

閳?/span> Yinda recommends testing actual samples before confirming production parameters.

Q4: Why use a coarse crusher before fine grinding?

閳?/span> Large spice particles increase the load on fine grinding equipment.

YDCS coarse crusher helps:

閳?/span> Improve feeding stability;

閳?/span> Reduce grinding load;

閳?/span> Increase overall efficiency.

Q5: Can the production line control powder temperature?

閳?/span> A cooling system such as YDLF air cooling chiller can assist temperature control.

閳?/span> However, actual powder temperature depends on:

閳?/span> Material condition;

閳?/span> Environment;

閳?/span> Production speed;

閳?/span> Grinding parameters.

閳?/span> Testing is required for accurate evaluation.

Conclusion

Complete Masala Spice Powder Grinding Solution by Yinda Machinery

閳?/span> Producing high-quality Masala spice powder requires more than a single grinding machine.

閳?/span> A reliable production system must consider:

閳?/span> Raw material characteristics;

閳?/span> Crushing process;

閳?/span> Grinding fineness;

閳?/span> Production capacity;

閳?/span> Temperature control;

閳?/span> Dust management;

閳?/span> Food-grade design.

閳?/span> Yinda Machinery provides customized Masala spice powder processing solutions from laboratory testing to industrial production lines.

閳?/span> Contact Yinda Machinery for a customized Masala spice powder grinding solution based on your raw materials and production requirements.

Request a customized powder processing solution

Send the raw material condition, target particle size, hourly capacity, local electrical supply and construction requirements for project evaluation and material testing.

Dennie Yuan | Powder Processing Solution Specialist
Email: dennie@yindamachinery.com
WhatsApp / WeChat: +86-13914192807
Website: https://yindapowdertec.com/

Final machine model, capacity, fineness, temperature-control and safety configuration are subject to project review and material testing.
