How to Choose the Right Nut Grinding Machine for Different Processing Needs
Compare coarse crushing, roller grinding, colloid milling, pin milling and air-classifier milling for nuts, nut butter and defatted nut cake powder.
Nuts are widely used in bakery products, confectionery, snacks, sauces, and other food applications. Depending on the end product, nuts may need to be processed into coarse granules, fine powder, or smooth paste. For oily nuts such as peanuts and almonds, the natural oil content is also an important factor when selecting grinding equipment, especially when fine powder is required.
At Yinda Machinery, we offer different grinding solutions for various nut processing requirements. The right machine depends on the raw material, desired final product, target particle size, oil content, and required production capacity. Below, we introduce five equipment options for different applications.

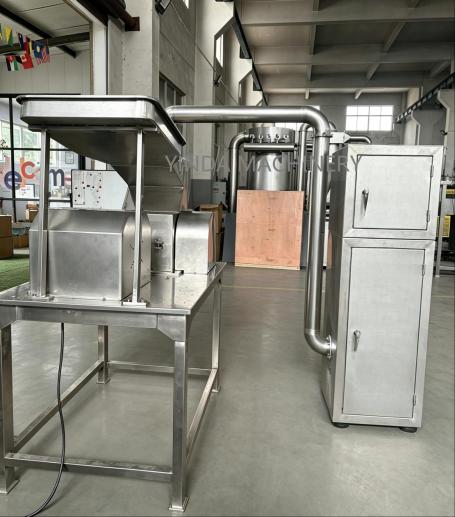

1. YDCS Series Coarse Crusher for Nut Granules
The YDCS Series Coarse Crusher is designed for coarse crushing of large nut pieces into smaller particles. The typical output size is around 2鈥?0 mm, controlled by selecting a suitable internal screen. It can be used as a standalone coarse crushing machine or as a pre-crushing step before further fine crushing or grinding.
Key Features
• Simple Structure: Consists of a crushing unit, with an optional dust collection system.
• Adjustable Output Size: Achieves a particle size of 2鈥?0 mm by replacing the internal screen.
• Multiple Models Available: Different models are available to meet various processing requirements.
• Easy Operation: Button control for convenient operation.
Peanut Crushing Test
Watch the peanut crushing test on our YDCS Series Coarse Crusher for your reference.
Watch the related YINDA equipment video

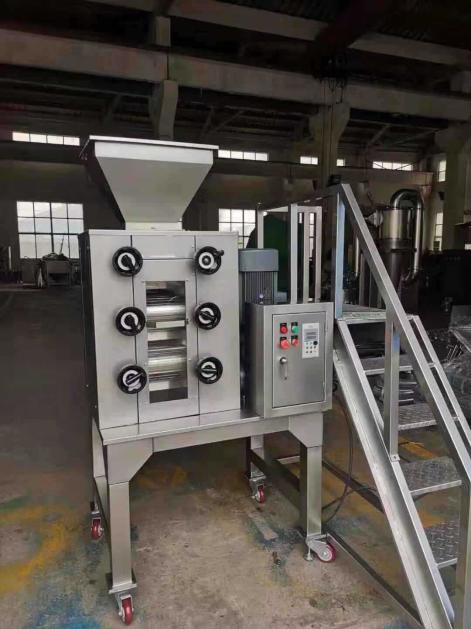

• YDGH Series Nut Roller Mill for 10鈥?0 Mesh Oily Material Powder
The YDGH Series Nut Roller Mill is designed for grinding oily materials such as peanuts, almonds, cocoa beans, coffee beans. The material enters the roller area through the feed hopper and is crushed by the pressure between two rollers. The final particle size can be adjusted by changing the gap between the two rollers, with a typical fineness range of 10鈥?0 mesh.
Key Features
• Suitable for Oily Materials: Designed for processing various oily nuts and seeds.
• Stable Operation: Runs smoothly with low noise.
• Easy Operation and Maintenance: Simple design for convenient operation and routine maintenance.
Peanut Roller Mill Test
Watch the YDGH Series Nut Roller Mill grinding peanuts for your reference.
Watch the related YINDA equipment video

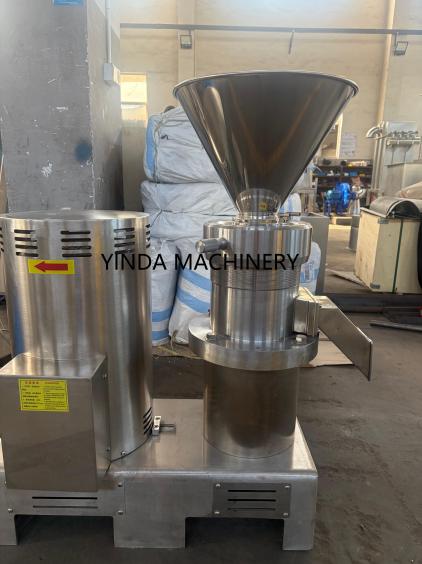

YDJM Series Colloid Mill for Nut Butter and Paste
The YDJM Series Colloid Mill is suitable for making nut butters, such as peanut butter and almond butter. The material is ground and refined through the shearing action between the rotor and stator. The gap between the rotor and stator can be adjusted to control the fineness and texture of the final product.
Key Features
• Efficient Grinding: The rotor and stator work together to shear and grind materials into a fine, smooth paste.
• Adjustable Fineness: The grinding gap can be adjusted to suit different product texture requirements.
• Cooling Function: Water inlet and outlet connections help dissipate heat during grinding.
• Easy Cleaning and Maintenance: The stainless steel construction is corrosion-resistant and easy to clean.
Peanut Test for YDJM Series Colloid Mill
Watch the peanut processing test using the YDJM Series Colloid Mill for your reference.
Watch the related YINDA equipment video
Grinding Nut Cake into Fine Powder
For nut products that require fine powder, the nuts are often pressed to remove oil first, leaving nut cake for further grinding. Both the YDWS Series Pin Mill and YDWF Series Air Classifier Mill can be considered for nut cake powder processing, depending on the required fineness and production capacity.

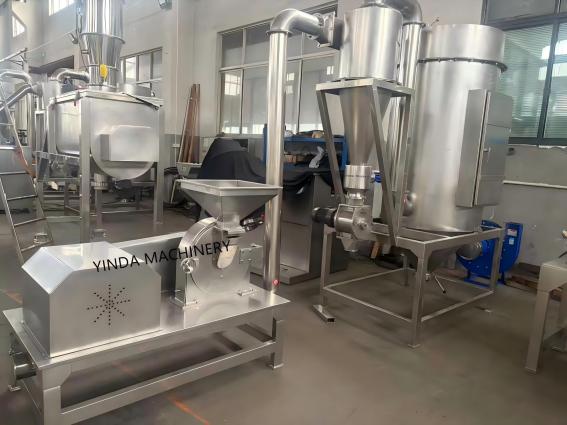

4. YDWS Series Pin Mill for 20鈥?20 Mesh Nut Cake Powder
The YDWS Series Pin Mill is suitable for grinding defatted nut cake into powder. It grinds the material through high-speed impact and shearing between the rotating and fixed pin discs, with a typical fineness range of 20鈥?20 mesh.
Key Features
• Complete Grinding System: Consists of the main grinding unit, cyclone separator, pulse dust collector, centrifugal fan, and electrical control system.
• Food-Grade Construction: Available in SS304 or SS316L stainless steel, with internal and external polishing options.
• Adjustable Fineness: Different screens can be selected to achieve the required powder fineness, typically around 20鈥?20 mesh.
• Flexible Production Capacity: Available in different models to meet customers鈥?production capacity requirements.
Almond Test on YDWS Series Pin Mill Set
Watch the almond grinding test on the YDWS Series Pin Mill for your reference.
Watch the related YINDA equipment video
5. YDWF Series Air Classifier Mill for 80鈥?00 Mesh Nut Cake Powder
The YDWF Series Air Classifier Mill is suitable for grinding defatted nut cake into fine powder. It integrates impact grinding and air classification in one system. During operation, the material is ground in the grinding chamber, while the classifier wheel separates particles according to size. Fine particles are collected as finished powder, while coarser particles can return for further grinding.
For oily materials such as nut cake, the typical fineness range is approximately 80鈥?00 mesh.
Key Features
• Integrated Grinding and Classification: Combines grinding and air classification in one system.
• Screenless Grinding: No conventional grinding screen is required. The classifier wheel speed can be adjusted to help control the final particle size.
• Continuous Production: Suitable for continuous fine powder processing, with a cyclone separator for powder collection.
• Dust Collection: A dust collector can be configured to help reduce dust during powder collection and support a cleaner working environment.
Cocoa Cake Test on YDWF Series Air Classifier Mill
Watch the cocoa cake grinding test on the YDWF Series Air Classifier Mill for your reference.
Watch the related YINDA equipment video
Frequently Asked Questions About Nut Processing
1. How Do I Choose the Right Nut Grinding Machine?
The right machine depends on your raw material and feeding size, required production capacity, target fineness, and final product type. Share these details with us, and we can recommend a suitable solution.
2. Can Oily Nuts Be Ground Directly into Fine Powder?
For dried oily nuts that need to be ground directly, the YDGH Series Nut Roller Mill is a suitable option, with a typical fineness range of 10鈥?0 mesh.
3. Why Is Nut Cake Often Used for Fine Powder Processing?
Nuts have a high oil content, which can affect grinding performance and cause material buildup or clogging inside the grinding chamber. Pressing the nuts to remove oil first helps make fine powder processing easier.
4. Can I Send Samples for Grinding Tests?
Yes. You can send us samples, visit our factory for testing, or join a live video test to review the results.
Why Choose Yinda Machinery?
At Yinda Machinery, we specialize in powder grinding and mixing equipment, auxiliary systems, and complete processing lines. We provide suitable solutions based on your raw materials, target fineness, production capacity, and processing requirements.
Our advantages include:
• Professional powder processing experience
• Customized equipment solutions
• Material sample testing
• Reliable equipment manufacturing
• Technical and after-sales support
• Global export experience
From coarse crushing to fine powder grinding, we work closely with customers to select suitable equipment and configurations for their nut processing needs.
Contact Yinda Machinery
Looking for a suitable nut grinding machine for your production needs? Contact us to discuss your raw materials, required powder fineness, and target capacity. Our team will help you find the right grinding solution for your application.
Request a customized powder processing solution
Send the raw material condition, target particle size, hourly capacity, local electrical supply and construction requirements for project evaluation and material testing.
