Konjac Grinding Machine: How to Process Konjac Powder – A Complete Fine Grinding Solution
YINDA Powder Processing Solution
Konjac Grinding Machine: How to Process Konjac Powder?A Complete Fine Grinding Solution
For producing fine konjac powder from dried konjac slices, a two-stage size-reduction process is generally more stable than feeding the dried slices directly into a fine grinding machine.
Quick Answer: What Machine Is Suitable for Grinding Konjac Powder?
The recommended konjac grinding process is:
Dried Konjac Slices ? YDCS Series Coarse Crusher ? Approx. 4 mm Granules ? YDWF Series ACM Mill ? Cyclone & Dust Collection ? Fine Konjac Powder (approx. 100 mesh)
The YDCS coarse crusher first reduces the dried konjac slices into smaller, more uniform granules of about 4 mm, which improves feeding stability for the downstream mill. The YDWF Air Classifier Mill (ACM Mill) then performs fine grinding with precise air classification, producing fine konjac powder at around 100 mesh.
Because konjac powder becomes sticky during grinding, the YDWF ACM Mill is a particularly suitable konjac grinding machine: it uses air classification instead of screens, so there is no screen blockage even with tacky material. When temperature control is important, a YDLF series air-cooled chiller can be added to reduce heat build-up and material sticking.
Confirmed process values:
閳?/span> Coarse crushing (YDCS): approximately 4 mm granules
閳?/span> Fine grinding (YDWF ACM): approximately 100 mesh konjac powder
閳?/span> Screen-less design: no blockage from sticky konjac powder
閳?/span> Optional air cooling: YDLF chiller for temperature-sensitive production
The actual production capacity should be confirmed through material testing according to the raw material condition and target fineness.
Introduction
Konjac powder, also known as konjac flour, is widely used in food ingredients, dietary fiber products and functional foods because of its high glucomannan (dietary fiber) content and strong thickening ability. However, producing high-quality konjac powder depends heavily on choosing a suitable konjac grinding machine and process.
Dried konjac slices have a fibrous structure, and konjac powder tends to become sticky and absorb moisture during grinding. A single-stage grinder 鈥?especially a screen- or sieve-type mill 鈥?may suffer from unstable feeding, material sticking and screen blockage. Therefore, a suitable combination of coarse crushing and screen-less fine grinding is essential for turning dried konjac into consistent, fine powder.
Yinda Machinery provides complete konjac grinding solutions based on the YDCS Series Coarse Crusher and the YDWF Air Classifier Mill (ACM Mill).
Material Characteristics and Challenges of Konjac Powder Processing
Konjac is different from ordinary grain or dried-fruit materials. Its grinding performance is affected by several characteristics, and each one has a matching solution in the Yinda konjac grinding system.
1. Fibrous Structure and Large Dried Slices
Dried konjac is usually processed as slices or larger pieces with a fibrous structure. Feeding these directly into a fine grinder can cause:
閳?/span> unstable feeding;
閳?/span> increased equipment load;
閳?/span> reduced grinding efficiency.
Solution: The YDCS coarse crusher first reduces the dried slices into approximately 4 mm granules, creating a stable and uniform feed for the fine grinding stage.
2. Konjac Powder Becomes Sticky During Grinding
Konjac is rich in glucomannan, which is strongly hygroscopic. During grinding, konjac powder easily becomes sticky and tends to adhere to machine surfaces. In traditional screen- or sieve-type mills, this often leads to screen blockage and unstable output.
Solution: The YDWF ACM Mill uses air classification instead of screens or sieves. There is no screen to block, so the mill can process sticky konjac powder with stable, continuous output and uniform fineness.
3. Heat and Moisture Sensitivity
During continuous fine grinding, heat build-up combined with konjac鈥檚 moisture-absorbing nature can increase material sticking and may affect powder quality and flowability.
Solution: The YDWF ACM Mill works with airflow that helps carry heat away from the grinding zone, and a YDLF series air-cooled chiller can be integrated when stricter temperature control is required 鈥?reducing heat accumulation, material sticking and quality risk during continuous production.
4. Raw Material Moisture
Konjac readily absorbs moisture, and higher moisture reduces crushing efficiency and increases sticking inside the machine.
Solution: Dried konjac slices should be sufficiently dry before grinding; the acceptable moisture level is confirmed according to the actual material and target fineness.
5. Final Application Determines Fineness
The required particle size depends on how the konjac powder will be used, for example:
閳?/span> konjac flour for food thickening and gelling;
閳?/span> dietary fiber and supplement powders;
閳?/span> functional beverage and plant-based food ingredients.
A common requirement for food-grade konjac powder is around 100 mesh, which the YDWF ACM Mill is designed to achieve.
Recommended Konjac Powder Process Flow
Cleaning and Inspection
鈫?/p>
Drying (if required)
鈫?/p>
YDCS Series Coarse Crusher
鈫?/p>
Approx. 4 mm Intermediate Granules
鈫?/p>
YDWF Series ACM Mill (Air Classifier Mill)
鈫?/p>
Cyclone Separation
鈫?/p>
Pulse Dust Collection
鈫?/p>
Fine Konjac Powder Collection (approx. 100 mesh)
Optional equipment may include:
閳?/span> feeding hopper;
閳?/span> magnetic separator;
閳?/span> screw or vacuum conveying system;
閳?/span> cyclone separator;
閳?/span> pulse dust collector;
閳?/span> rotary airlock;
閳?/span> YDLF air-cooled chiller;
閳?/span> vibrating sifter;
閳?/span> powder collection bin;
閳?/span> packing machine.
The complete configuration should be selected according to production capacity, plant layout, cleanliness requirement and final powder specification.
Machine Selection for Konjac Powder Processing

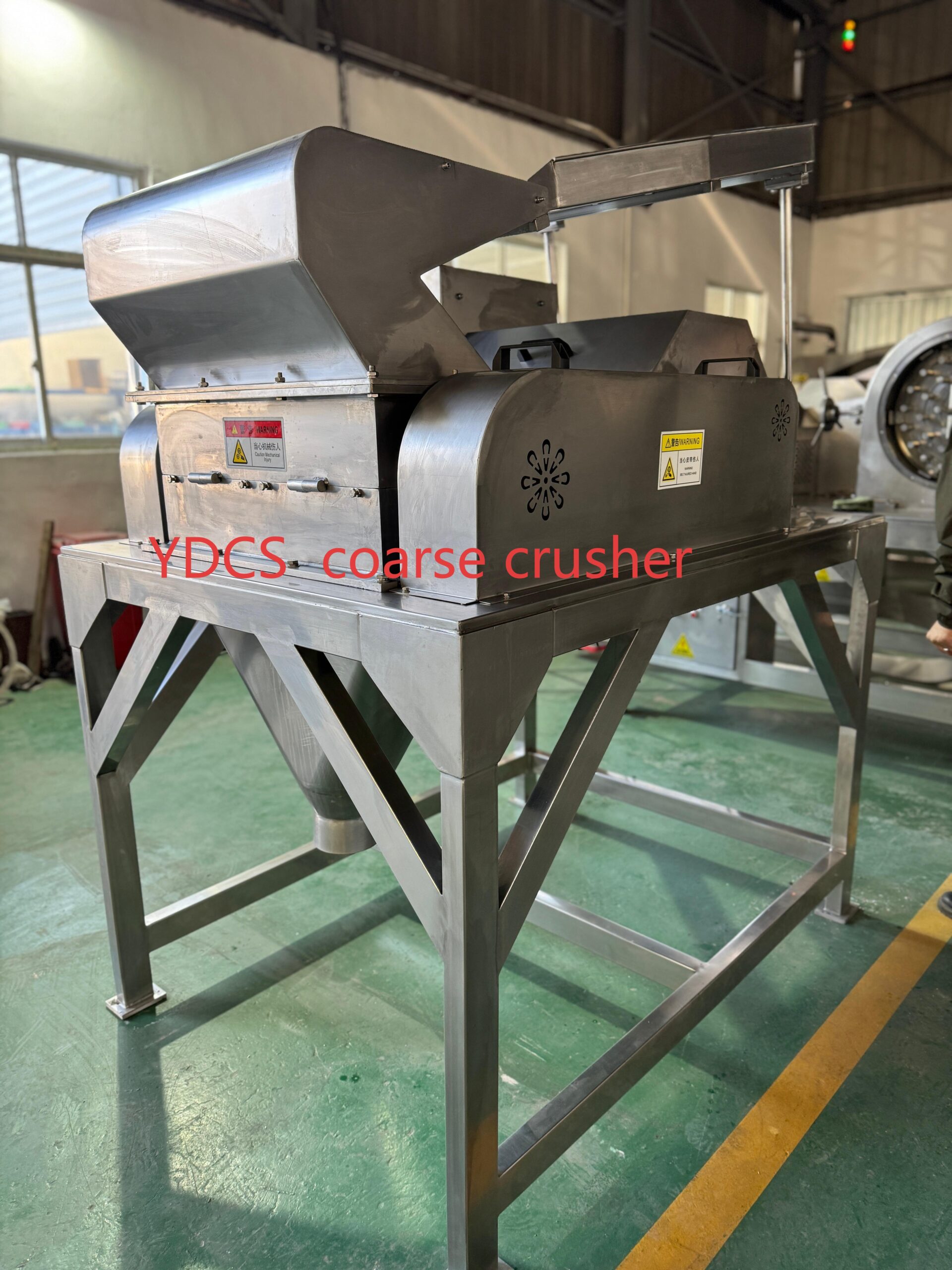

Stage 1: YDCS Series Coarse Crusher
The Yinda YDCS Series Coarse Crusher is recommended for reducing dried konjac slices into smaller granules (about 4 mm) before fine grinding.
The machine adopts a horizontal crushing structure. Material enters the crushing chamber through the feeding port and is reduced by the combined action of rotating and fixed knives, then discharged continuously through the outlet.
Why Use the YDCS Coarse Crusher Before the ACM Mill?
Pre-crushing provides a more suitable feeding size for the downstream ACM mill. Its main functions are:
閳?/span> reducing the size of dried konjac slices to approximately 4 mm;
閳?/span> improving feeding stability of the ACM mill;
閳?/span> lowering the direct load on the fine grinding system;
閳?/span> supporting stable, continuous konjac powder production;
閳?/span> reducing the risk of oversized material entering the ACM mill.
Key Features of the YDCS Coarse Crusher
閳?/span> Suitable for dry, fibrous materials such as konjac, herbs and food ingredients;
閳?/span> GMP-oriented design, stainless steel with inner and outer polishing for easy cleaning;
閳?/span> High throughput with reasonable energy consumption for stable downstream feeding.
Stage 2: YDWF Series Air Classifier Mill (ACM Mill)
After coarse crushing, the konjac granules are fed into the Yinda YDWF ACM Mill for fine powder production. The YDWF ACM Mill is an integrated grinding and classification system that produces fine, uniform konjac powder 鈥?around 100 mesh 鈥?without screens or sieves.
It combines grinding, air classification and powder separation in one system, which is especially important for a sticky material like konjac.
Why Choose the YDWF ACM Mill for Konjac Powder Production?
閳?/span> Screen-less design 鈥?no screen blockage from sticky konjac powder; more stable continuous operation.
閳?/span> Integrated grinding and classification 鈥?oversized particles are automatically returned for regrinding, giving uniform ~100 mesh powder and reducing over-grinding.
閳?/span> Airflow classification with optional YDLF chiller 鈥?suitable for heat- and moisture-sensitive konjac.
閳?/span> Wide model range 鈥?different capacities to match different production requirements.
Working Principle
How Does the YDCS Coarse Crusher Work?
Dried konjac slices enter the crushing chamber through the feeding inlet. Rotating cutting components apply cutting, shearing and impact forces, and the broken particles are discharged after reaching a suitable size (about 4 mm). The output is an intermediate granule for downstream fine grinding rather than a finished powder.

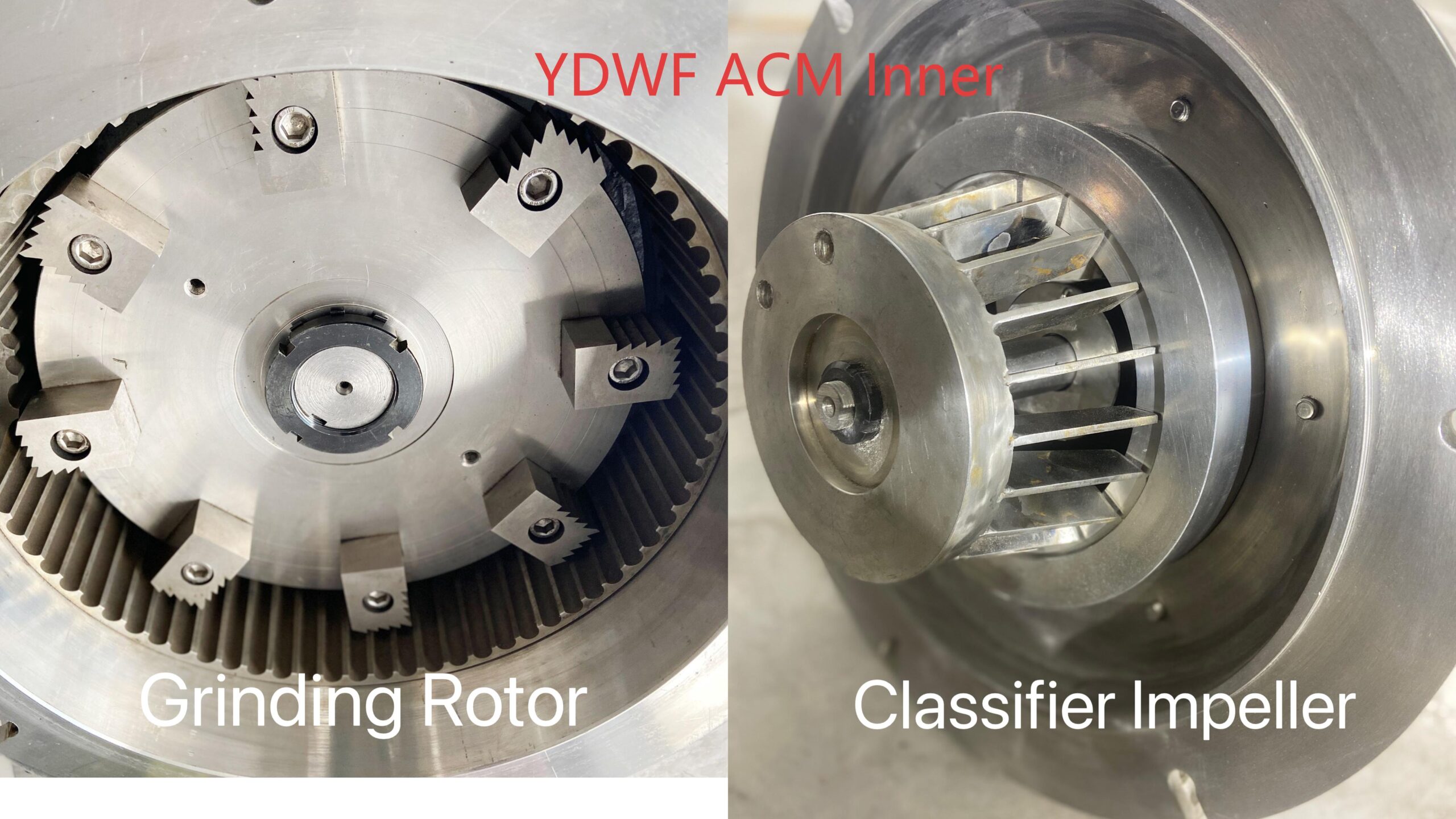

How Does the YDWF ACM Mill Work?

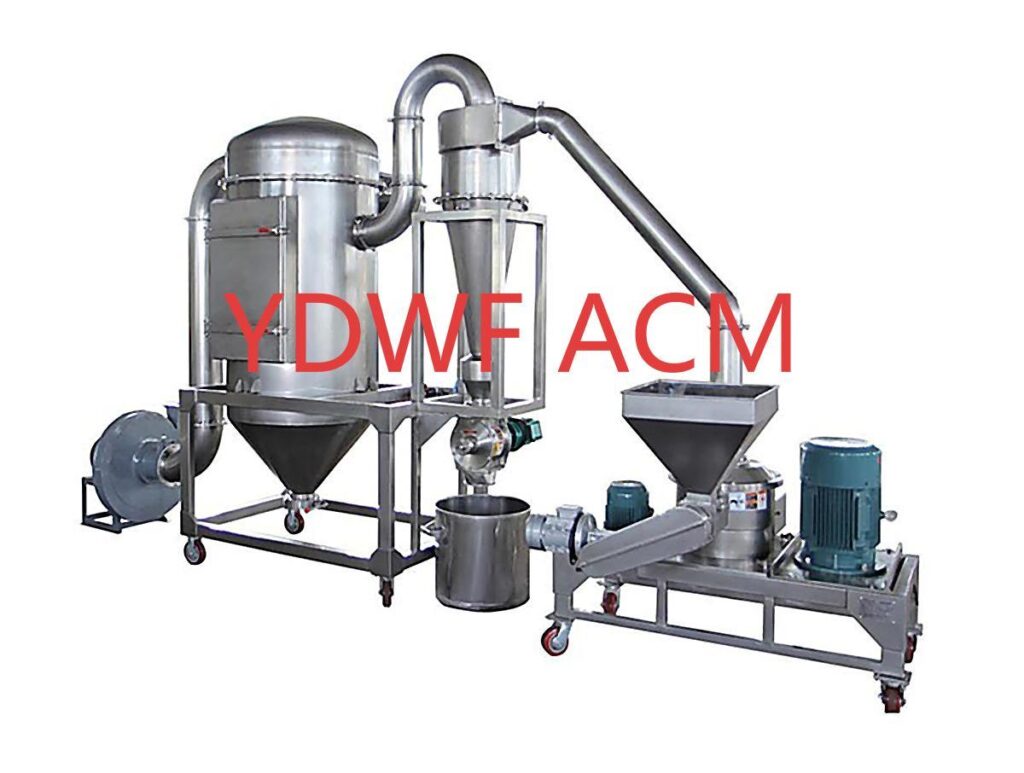

A complete ACM grinding system typically includes a feeding device, ACM grinding chamber, dynamic classifier, cyclone separator, pulse dust collector, induced-draft fan, rotary airlock, control cabinet and powder collection container.
The pre-crushed konjac granules enter the grinding chamber and are reduced by high-speed grinding components. The airflow then carries the powder to the classifier wheel:
閳?/span> particles that meet the required fineness (approx. 100 mesh) pass through and are collected via the cyclone and dust collector;
閳?/span> oversized particles are rejected and returned to the grinding zone for further size reduction.
Because classification is done by airflow rather than a screen, sticky konjac powder does not block the system, allowing stable and continuous production.
Watch the related YINDA equipment video
Configuration Options
Option 1: Standalone Coarse Crusher
A standalone YDCS coarse crusher may be suitable when only coarse konjac granules are required, the production volume is limited, or the machine will be connected to existing downstream equipment. Dust around the discharge point should still be evaluated during production.
Option 2: Coarse Crusher with High-Efficiency Dust Collection Box
When workshop cleanliness is more important, the coarse crusher can be connected to a high-efficiency dust collection box, which creates negative pressure around the crushing and discharge sections and captures airborne fine particles. This configuration is more suitable for food-processing workshops, continuous production and enclosed production areas.
Option 3: YDWF ACM Mill with YDLF Air-Cooled Chiller
Fine grinding generates heat, and konjac powder is both heat- and moisture-sensitive and tends to stick. A YDLF series air-cooled chiller can be integrated to control the grinding temperature, which helps reduce heat accumulation, material sticking, reduced flowability and cleaning difficulty. The actual powder temperature depends on ambient temperature, feeding rate, grinding time, target fineness, equipment model, system airflow and chiller capacity, so a required temperature should be treated as a test condition rather than a standard machine specification.
Option 4: SS304 or SS316L Product-Contact Parts
For general food konjac powder processing, SS304 is commonly used for product-contact parts. SS316L may be requested when stronger corrosion resistance is required, when the customer has a specific internal material standard, or for pharmaceutical and special food applications. The stainless-steel scope (grinding chamber, feeding hopper, cyclone, powder pipes, collection bin, etc.) should be defined clearly.
Comparison Analysis
Single-Stage Grinding vs. Two-Stage Grinding
For dried konjac, a two-stage process (coarse crushing + ACM fine grinding) is generally easier to control and gives more stable feeding than direct fine grinding, especially because konjac becomes sticky. The final decision should depend on feeding size, target fineness, capacity and test results.
Screen-Type Mill vs. Screen-less ACM Mill
Traditional screen or sieve mills often suffer from blockage when grinding sticky konjac powder. The screen-less ACM Mill avoids this problem and provides more uniform particle size and more stable continuous output.
ACM Mill Without Chiller vs. ACM Mill with Chiller
The YDLF chiller is an optional temperature-control configuration. It is not mandatory for every project but is beneficial for continuous production, very fine powder, or when heat-related sticking and quality loss are a concern.
How to Select the Right Konjac Grinding Machine
The machine model should be selected from the complete process requirement rather than from the keyword 鈥渒onjac grinding machine鈥?alone. Customers are recommended to provide the following information.
Raw Material Information
閳?/span> Are the konjac materials fresh, dried slices or already partially processed?
閳?/span> What is the approximate moisture content?
閳?/span> Is the material relatively dry and brittle, or damp and sticky?
閳?/span> Are any foreign materials present?
Feeding Information
閳?/span> What is the maximum feeding size (slice size)?
閳?/span> Will feeding be manual or automatic?
閳?/span> Is continuous feeding required?
Final Product Requirement
閳?/span> Is the target fineness defined in mesh or microns (e.g. around 100 mesh)?
閳?/span> Is a narrow particle-size distribution required?
閳?/span> Is the powder used for food thickening, dietary fiber or beverages?
閳?/span> Is a vibrating sifter required after grinding?
Capacity Requirement
閳?/span> What is the required hourly output (kg/h)?
閳?/span> Is capacity based on feed quantity or collected qualified powder?
閳?/span> How many hours will the line run continuously?
Capacity should always be linked to the target fineness 鈥?a machine reaches higher capacity at coarser sizes and lower capacity when producing a finer powder.
Temperature Requirement
閳?/span> Is there a maximum acceptable powder temperature?
閳?/span> What is the ambient workshop temperature?
閳?/span> Is continuous long-time operation required?
閳?/span> Is a YDLF chiller needed for heat control?
Construction and Compliance
閳?/span> Are contact parts required in SS304 or SS316L?
閳?/span> Is a food-grade material certificate required?
閳?/span> Is CE documentation required?
閳?/span> What are the local voltage, frequency and phase?
Technical Data Classification
To avoid misunderstanding, technical information for a konjac grinding project should be classified into three categories.
1. Confirmed Process Values
閳?/span> Coarse crushing (YDCS): dried konjac reduced to approximately 4 mm;
閳?/span> Fine grinding (YDWF ACM): fine konjac powder around 100 mesh;
閳?/span> Screen-less classification avoids blockage from sticky konjac powder.
2. Equipment Applicable Range
YDCS: applicable to pre-crushing dried konjac slices;
YDWF ACM: applicable to fine grinding and air classification of konjac powder;
閳?/span> Dust collection box: applicable when cleaner crushing is required;
閳?/span> YDLF chiller: applicable when additional temperature control is required.
3. Experience-Based Reference
閳?/span> Around 100 mesh is a common target for food-grade konjac powder;
閳?/span> A two-stage process provides more stable feeding than direct fine grinding;
閳?/span> A chiller is beneficial for continuous or heat-sensitive fine grinding.
The actual capacity and fineness for a specific project should be confirmed through material testing.
Application Examples of Konjac Powder
Konjac powder is used as a functional ingredient across several industries thanks to its high dietary fiber content, water-holding capacity and thickening properties. Depending on the final application, manufacturers may have different requirements for powder fineness, consistency and processing stability.
1. Food Ingredients
Konjac powder is commonly used in food processing as a natural thickening and texture-improving ingredient, for example in noodles and pasta products, jelly and gel products, meat substitutes, and bakery and processed foods. For food ingredient production, manufacturers usually require uniform powder quality, good flowability and stable production performance.
2. Dietary Supplements and Health Products
Due to its dietary fiber (glucomannan) content, konjac powder is widely used in nutritional supplements and health products. For these applications, consistent particle size, clean processing conditions and reliable powder collection are important.
3. Functional Beverage Products
Konjac powder is used in functional beverage formulations where powder uniformity and dispersion performance matter. Fine and consistent powder at around 100 mesh helps improve mixing performance, product stability and processing efficiency.
4. Plant-Based and Specialty Food Applications
With the growing demand for plant-based ingredients, konjac powder is increasingly used in innovative food products, which often require reliable powder quality, stable supply capacity and flexible particle-size adjustment.
Factors Affecting Konjac Powder Quality
1. Raw Material Moisture
Moisture content has a significant influence on grinding performance. Higher moisture may cause poor feeding, material sticking and reduced grinding efficiency. Proper drying before grinding helps improve processing stability.
2. Required Powder Fineness
Different applications require different powder specifications. The final particle size depends on raw material characteristics, feeding conditions, grinding parameters and production requirements.
3. Production Capacity
Industrial konjac powder production requires a balance between powder fineness, output capacity, energy consumption and stable operation. A suitable crushing and grinding process helps achieve efficient production.
Frequently Asked Questions
Q1: What machine is suitable for making konjac powder?
For dried konjac slices, a combination of coarse crushing and fine grinding is recommended. Yinda Machinery uses a YDCS coarse crusher together with a YDWF ACM Mill to achieve stable and uniform konjac powder production.
Q2: Why is coarse crushing needed before grinding konjac?
Dried konjac slices have irregular sizes and a fibrous structure. A coarse crusher reduces the material to about 4 mm, improving feeding stability and increasing the efficiency of the fine grinding process.
Q3: Konjac powder is sticky 鈥?will it block the mill?
No. The YDWF ACM Mill uses an air classification system instead of screens or sieves, so there is no screen to block. This makes it especially suitable for sticky konjac powder and allows stable continuous operation.
Q4: What fineness can the ACM Mill achieve for konjac powder?
The YDWF ACM Mill is designed to produce fine konjac powder at around 100 mesh, with adjustable particle-size control. The final fineness depends on raw material characteristics and production requirements and should be confirmed through testing.
Q5: Do I need an air-cooled chiller for konjac grinding?
A YDLF chiller is optional. It is recommended for continuous production, very fine powder, or when heat-related sticking and quality loss are a concern, because konjac is heat- and moisture-sensitive.
Q6: Can Yinda provide a complete konjac powder processing line?
Yes. Yinda Machinery provides customized konjac powder processing solutions including coarse crushing, fine grinding, powder collection, cooling and packing, according to different materials, capacity requirements and final powder specifications.
Conclusion
For dried konjac slices, the combination of the YDCS Series Coarse Crusher and the YDWF Air Classifier Mill provides an efficient and stable konjac grinding solution: coarse crushing to about 4 mm, then screen-less fine grinding to around 100 mesh. Because the ACM Mill classifies by airflow rather than screens, it handles sticky konjac powder without blockage, and a YDLF air-cooled chiller can be added for temperature control.
Recommended configuration:
YDCS Coarse Crusher + Optional Dust Collection Box + YDWF ACM Mill + Optional YDLF Chiller
The final machine model, capacity, fineness and temperature-control configuration should be selected according to the actual konjac material, target application and material test results. Yinda Machinery provides professional powder processing solutions for the food, pharmaceutical and chemical industries.
